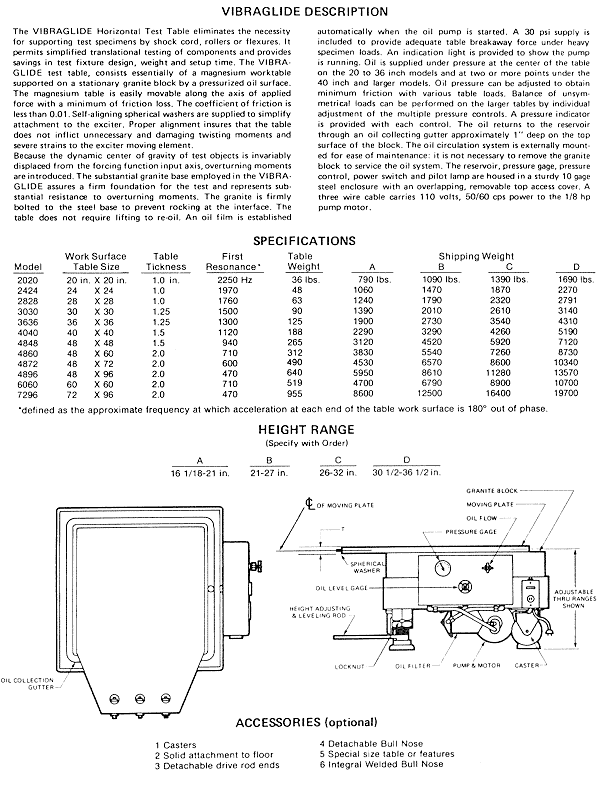

Vibraglide Sliptable

For horizontal motion, the M/RAD Vibraglide Sliptable is considered the industry favorite for ease of operation and longevity. Vibraglide sliptables have been in continuous operation for over twenty-seven years. Designed for interface with any electrodynamic shaker, the Vibraglide test table eliminates the necessity for supporting test specimens by shock cord, rollers or flexures. It permits simplified translational testing of components and provides savings in test fixture design, weight and set up time. The Vibraglide sliptable consists essentially of a magnesium worktable supported on a stationary granite block by a pressurized oil surface. The magnesium table is easily movable along the axis of applied force with a minimum of friction loss. Self-aligning spherical washers are supplied to simplify attachment to the shaker. Drive Bars are available to increase the rigidity of the shaker armature and to provide a quick means of attachment to the slipplate. Proper alignment insures that the table does not inflict unnecessary and damaging twisting moments and severe strains to the shaker armature. The substantial granite base assures a firm foundation for the test and represents substantial resistance to overturning moments. A 30 psi oil supply system provides adequate table breakaway force under heavy specimen loads and is externally mounted for ease of maintenance. Flexures and low pressure bearings are available for increased overturning moment restraint.
